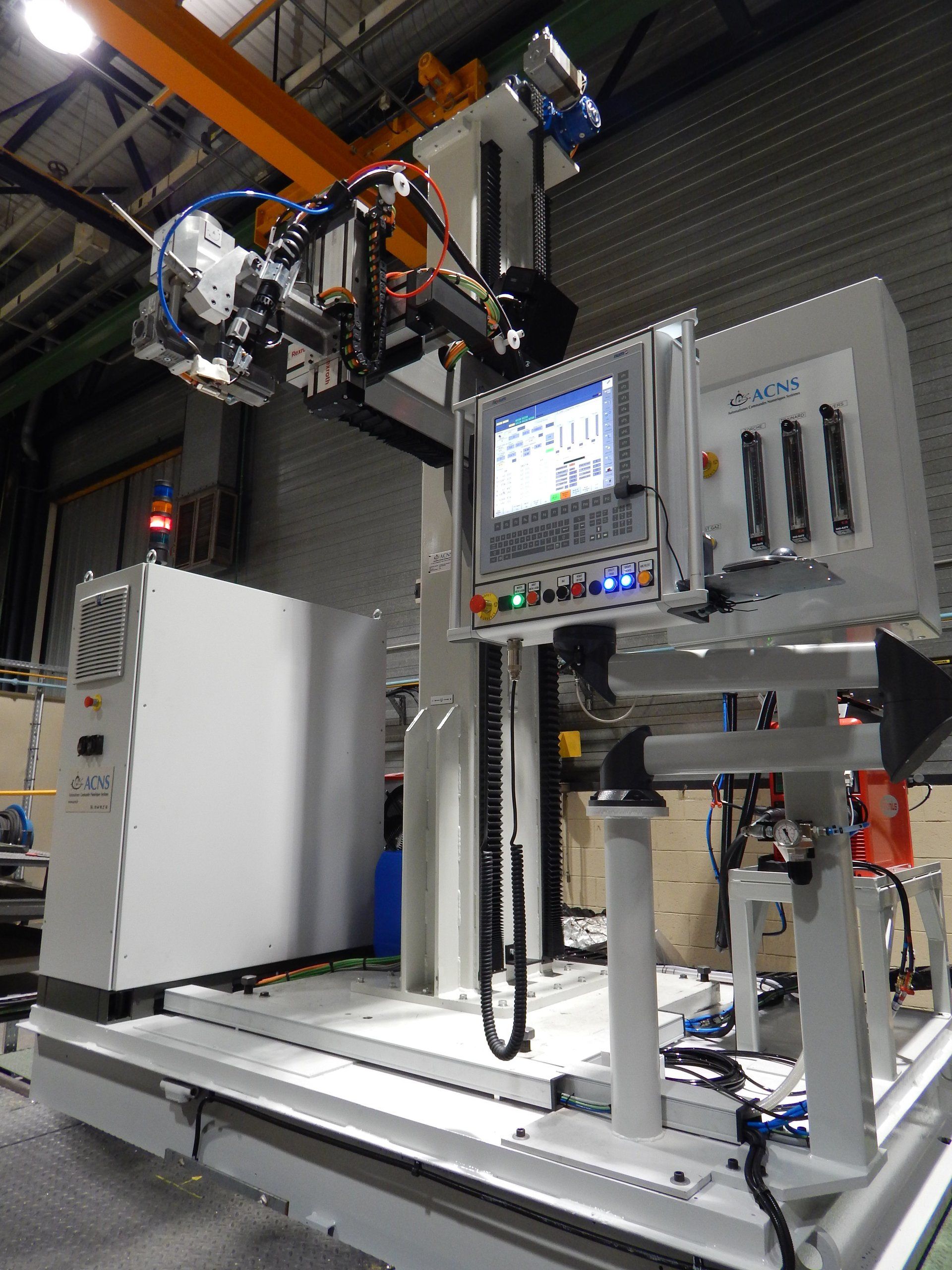

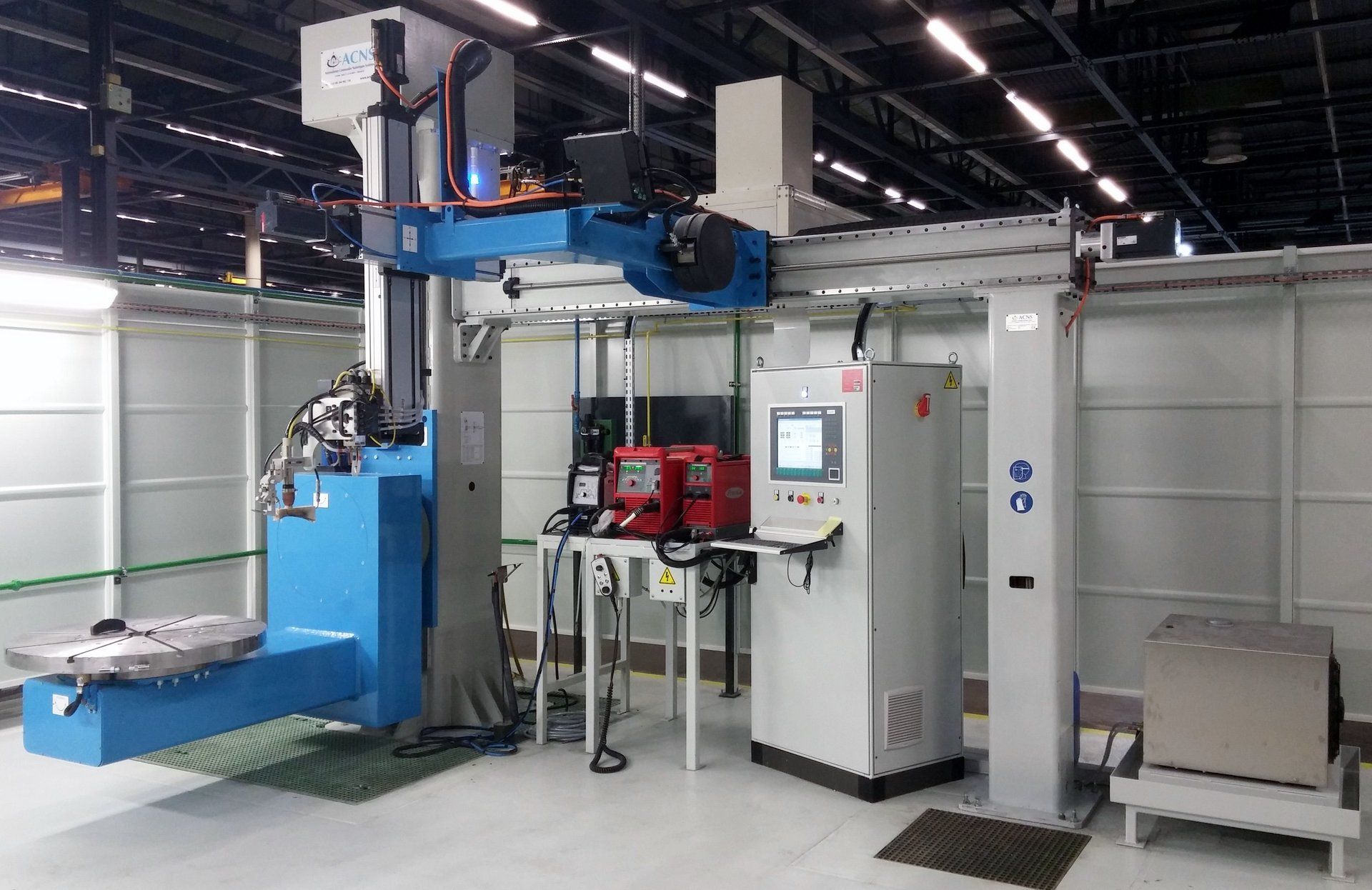

TIG - PLASMA welding machine

Welding machines

Developed with demanding professionals for high precision welding,
ACNS machines combine CNC reliability to the know-how of manual welding.

Technical features :

  • Movements by NC with digital axis drives
  • Number of axis : 3 to 10
  • Positioner capacity : from 500 to 2500 kg
  • Quick welding torch change
  • Adaptation of special torch, by Schunk system or another

Functionalities :

  • Welding program and trajectories in only one file : norm NADCAP
  • Wire speed digital setpoint
  • Wire speed control by encoder
  • Argon gas digital flow regulator
  • Trajectory readjustment by probe, tracking-camera, ...
  • Parameters correction during the welding : wire speed, welding power, arc voltage
  • Data recording during the welding and creation of a report

Optimized performances:

  • Devices controlled by digital-bus
  • Arc voltage control from torch reference plane
  • Torch geometry definition by learning procedure
  • Welding axes interpolation from the torch-tip: RTCP
  • Display video process by video camera
  • Gas, hydraulic and air embedded on rotation plate by turning connectors
  • Interface ready for GPAO softwares
  • Work piece and torch coherence with bar code control
  • Tracking camera

Contact: Emmanuel Mignot - direction@acns.fr - +33 164982750

Product sheet on request
